HIGHLY EFFICIENT

CONCRETE BLOCK MAKING MACHINE

Concrete Block Making Machine
PDF DOWNLOAD

Major Components of JK-VIBMAX-1025

Auto Unload Pan Type Mixer

SPECIFICATION

  1. Motor : 5 Hp ,Sgl. Motors© Brand
  2. Batch Capacity : 300 (Maximum)
  3. Dimension : Drum Dia - 48 Inches, Height -59 Inches
  4. Application : Approx, Used For Mixing Concrete With Every Type Of Aggregates Superbly Smooth For Making Paver And Tiles
  5. Electrical Supply Requirement: 3 Phase Ac Supply
  6. Warranty Period : 12 Months On Site Warranty.
  7. Gear Type : 12 Liters warm Reduction Gear Box.

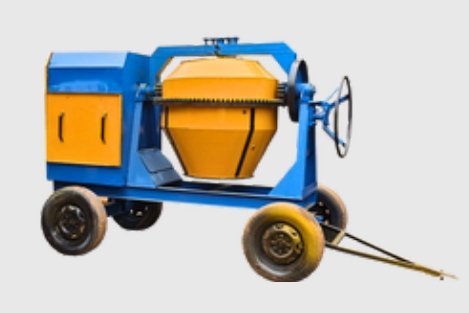

Tilting Drum Concrete Mixer

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.
Pan Type Color Mixer for Top Layer

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.
Auto Unload Pan Type Mixer

SPECIFICATION

  1. Motor : 5 Hp ,Sgl. Motors© Brand
  2. Batch Capacity : 300 (Maximum)
  3. Dimension : Drum Dia - 48 Inches, Height -59 Inches
  4. Application : Approx, Used For Mixing Concrete With Every Type Of Aggregates Superbly Smooth For Making Paver And Tiles
  5. Electrical Supply Requirement: 3 Phase Ac Supply
  6. Warranty Period : 12 Months On Site Warranty.
  7. Gear Type : 12 Liters warm Reduction Gear Box.
Tilting Drum Concrete Mixer

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.
Pan Type Color Mixer for Top Layer

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.

PRODUCT SPECIFICATION

No JKTM-FAT-2200 EVEREST Production Type
1 Overall Dimension 40Lx60Bx15H
2 Total Power 48HP/34kw
3 Rating Pressure Maximum 3800Psi(255 ton) Min 1400 psi (95 ton)
4 Vibration Frequency 65To 75Hz( Heartz)
5 Cycle Time per minute 3 to 35 Stroke/cycles per minute
6 Pallet Size 32inch x 24 inch
7 Power Supply 3 Phase 440 volts commercial Connection
8 Maximum Block Height 5" Inch
9 Automation Grade Fully Automatic
10 End Production Type Flyash brick, Cement Brick, Paver Block.

Final Products

Concrete Hollow Block

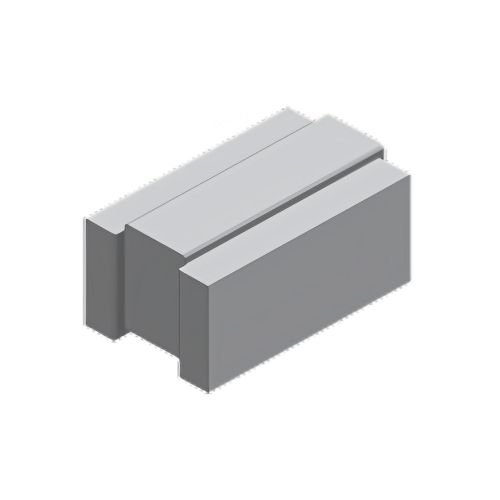

Concrete Interlocking Block
Concrete Solid Block
