HIGHLY EFFICIENT

CONCRETE PAN MIXTURE

MODEL: CMA250

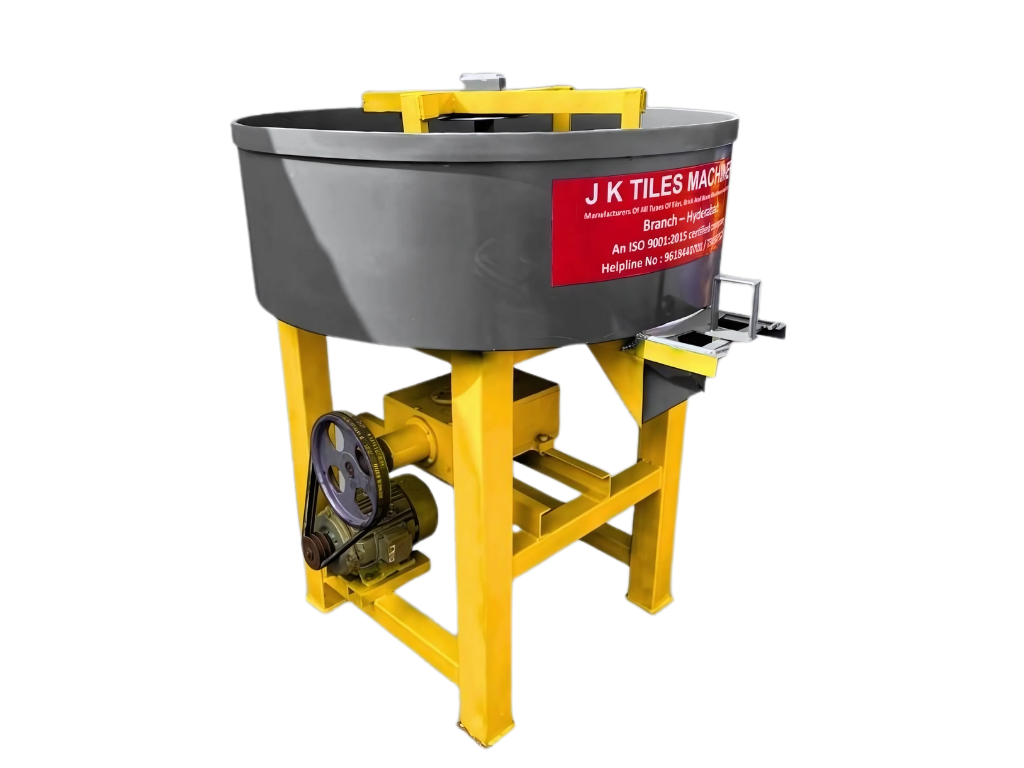

CONCRETE PAN MIXTURE AT-CMA250

CONCRETE PAN MIXTURE

PDF DOWNLOAD

Major Components of CONCRETE PAN MIXTURE AT-CMA300

Auto Unload Pan Type Mixer

SPECIFICATION

  1. Motor : 5 Hp ,Sgl. Motors© Brand
  2. Batch Capacity : 300 (Maximum)
  3. Dimension : Drum Dia - 48 Inches, Height -59 Inches
  4. Application : Approx, Used For Mixing Concrete With Every Type Of Aggregates Superbly Smooth For Making Paver And Tiles
  5. Electrical Supply Requirement: 3 Phase Ac Supply
  6. Warranty Period : 12 Months On Site Warranty.
  7. Gear Type : 12 Liters warm Reduction Gear Box.
Tilting Drum Concrete Mixer

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.
Pan Type Color Mixer for Top Layer

SPECIFICATION

  • Motor: 5 Hp, Sgl. Motors© Brand
  • Batch Capacity: 150 (Maximum)
  • Dimension: 39” X 36” X 46” (Lxwxh), Drum
  • Dia: 36”, Drum Depth: 16.5” (In Inches)
  • Application: Used in layer smooth color mixing for manufacturing various cement tiles, pavement blocks, and designer tiles.
  • Electrical Supply Requirement: 3-Phase Ac Supply.
  • Warranty Period: 12 Months. On Site
  • Gear Box: 12 Liters. Heavy Duty Oil Filled Gear Box
Heavy Duty Vibro Forming Table

SPECIFICATION

  • Motor: 3Hp, S.G.L Motors© Brand
  • MainSheet: 8mm(HeavyDutyworkoncompleteTable)
  • Dimension: 10 feet X3 feet.
  • Application: Used For giving vibrations to molds in the manufacturing of a Wide Variety of cement tiles, paver blocks, and Designer tiles, its major work is to remove the air pockets that are present in the concrete to achieve the best strength.
  • Electrical supply Requirement: 3-phase AC Supply.
  • Warranty period: 12 months.
  • Vibration Brackets: JKTMownBrand
Economical Low budget Vibro Forming

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.
Auto unload Discharge Heavy duty Concrete mixer

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.

PRODUCT SPECIFICATION

No JK-AT-CMA300 Production Type
1 Overall Dimension Drum Dia - 48 Inches, Height -59 Inches
2 Total Power 5 Hp ,SGL. Motors© Brand
3 Batch Capacity Batch Capacity 500 Kgs.(Maximum)
4 Gear Type 12 Liters warm Reduction Gear Box
5 Cycle Time Total 27 Blade Rounds/Cycles Per Minute For(CustomerQuery)
6 Sheet Thickness 8 MM Top Sheet Thickness/ Bottom Plate 12 MM/Side Plate 8 MM
7 Power Supply 3 Phase Commercial Connection.
8 Maximum Block Height Variable Depends On Product
9 Automation Grade Auto Unload Type Semi Automatic+manual
10 End Production Type Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles

Final Products

Zig Zag Paver Block

Size 60mm / 80mm

Cosmic Paver Block

Size 60mm

Damro Paver Block

Size 60mm
