HIGHLY EFFICIENT

VIBRATION TABLE

12X3

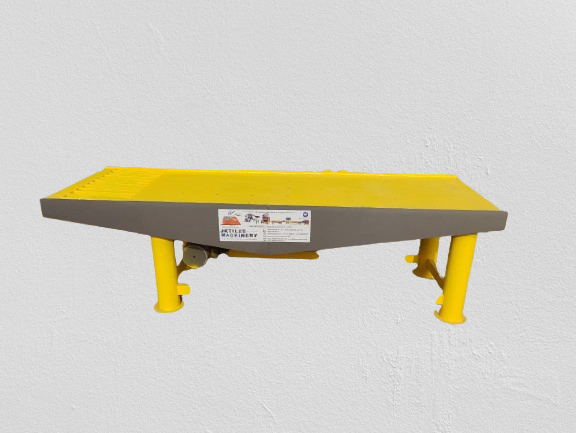

VIBRATION TABLE 12x3

Paver/interlocking Block and chequered tiles Making Machine

PDF DOWNLOAD

Major Components of JK-VIBMAX-1025

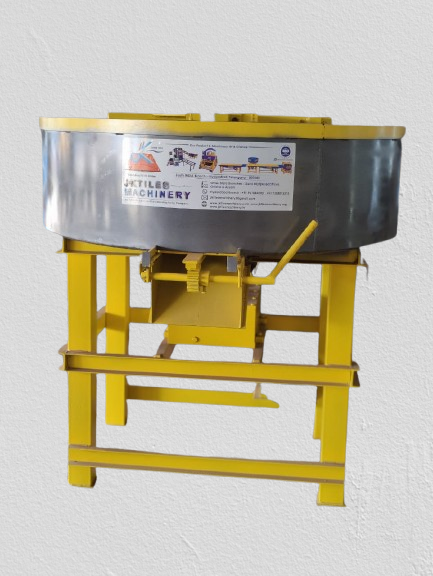

Auto Unload Pan Type Mixer

SPECIFICATION

  1. Motor : 5 Hp ,Sgl. Motors© Brand
  2. Batch Capacity : 300 (Maximum)
  3. Dimension : Drum Dia - 48 Inches, Height -59 Inches
  4. Application : Approx, Used For Mixing Concrete With Every Type Of Aggregates Superbly Smooth For Making Paver And Tiles
  5. Electrical Supply Requirement: 3 Phase Ac Supply
  6. Warranty Period : 12 Months On Site Warranty.
  7. Gear Type : 12 Liters warm Reduction Gear Box.
Tilting Drum Concrete Mixer

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.
Pan Type Color Mixer for Top Layer

SPECIFICATION

  • Motor: 5 Hp, Sgl. Motors© Brand
  • Batch Capacity: 150 (Maximum)
  • Dimension: 39” X 36” X 46” (Lxwxh), Drum
  • Dia: 36”, Drum Depth: 16.5” (In Inches)
  • Application: Used in layer smooth color mixing for manufacturing various cement tiles, pavement blocks, and designer tiles.
  • Electrical Supply Requirement: 3-Phase Ac Supply.
  • Warranty Period: 12 Months. On Site
  • Gear Box: 12 Liters. Heavy Duty Oil Filled Gear Box
Heavy Duty Vibro Forming Table

SPECIFICATION

  • Motor: 3Hp, S.G.L Motors© Brand
  • MainSheet: 8mm(HeavyDutyworkoncompleteTable)
  • Dimension: 10 feet X3 feet.
  • Application: Used For giving vibrations to molds in the manufacturing of a Wide Variety of cement tiles, paver blocks, and Designer tiles, its major work is to remove the air pockets that are present in the concrete to achieve the best strength.
  • Electrical supply Requirement: 3-phase AC Supply.
  • Warranty period: 12 months.
  • Vibration Brackets: JKTMownBrand
Economical Low budget Vibro Forming

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.
Auto unload Discharge Heavy duty Concrete mixer

SPECIFICATION

  1. Motor: 5Hp, SGL. Motors © Brand
  2. Batch Capacity: 300Kgs.(Maximum)
  3. Dimension: 89"x45"x60" (In Inches)Approx.
  4. Application: Used in Top Layer Color Mixing For manufacturing of Wide Variety of cement tiles, paver block and Designer tiles.
  5. Electrical supply Requirement: 3 Phase AC Supply.
  6. Warranty period: 6 months.
  7. Gear Type: Rotary type with double Gears set.
Supporting Table
Silicon Plastic Mould
PVC Rubber Mould
Chemical Hardner
Iron Oxide Colour

Major Parts of JK-VIBMAX-1025

PRODUCT SPECIFICATION

No JK-VIBMAX-1230 Production Type
1 Overall Dimension 12 Ft X 3 Ft
2 Total Power 3 Hp / 2.1 Kilowatt
3 Vibration Suspension Type Anti Vibration JK Rubber Paded U Mounting Brackets
4 Vibration Frequency 80-90 Heartz (Hz)
5 Cycle Time per minute 42 to 48 secs per mould
6 Sheet Thickness 8 MM Top Sheet Thickness/ Bottom Plate 12 MM/side Plate 8 MM
7 Power Supply 3 Phase Commercial Connection.
8 Maximum Block Height Variable Depends On Product
9 Automation Grade Semi Automatic+manual
10 End Production Type Paver Block, Cement Tiles, Concrete Block, Parking Tiles, Interlocking Tiles Etc.
